前言
本篇文章开始,将会介绍AVFoundation
,苹果在iOS8.0
之后推出的音视频框架,它提供了照片/视频捕捉功能
,主要负责媒体文件的采集,只要是音视频相关的功能业务,例如小视频或直播,都离不开它。
一、核心类的介绍
首先介绍一下AVFoundation
框架中的一些核心类👇🏻
- 捕捉会话
AVCaptureSession
- 捕捉设备
AVCaptureDevice
- 捕捉设备输入
AVCaptureDeviceInput
- 捕捉设备输出
AVCaptureOutput(抽象类)
◦ 静态图片AVCaptureStillImageOutput
◦QuickTime
电影文件AVCaputureMovieFileOutput
◦ 音频数据文件AVCaputureAudioDataOutput
◦ 视频数据文件AVCaputureVideoDataOutput
- 捕捉连接
AVCaptureConnection
- 捕捉预览
AVCaptureVideoPreviewLayer
接下来,实现一个基础案例,使用AVFoundation
框架,实现一个相机
的功能。
二、视频预览图层
首先,需要定义一个视频预览图层
👉🏻 THPreviewView
,当我们照相或拍视频时,需要预览吧,没有预览就是黑乎乎一片啥也看不到。THPreviewView
是通过AVCaptureSession
来关联AVCaptureVideoPreviewLayer
(捕捉预览) 的,所以头文件中需要声明👇🏻
#import <AVFoundation/AVFoundation.h>
@interface THPreviewView : UIView
//session用来关联AVCaptureVideoPreviewLayer 和 激活AVCaptureSession
@property (strong, nonatomic) AVCaptureSession *session;
@end
然后THPreviewView.m
实现文件中session
的get/set
方法 👇🏻
- (AVCaptureSession*)session {
//重写session方法,返回捕捉会话
return [(AVCaptureVideoPreviewLayer*)self.layer session];
}
- (void)setSession:(AVCaptureSession *)session {
//重写session属性的访问方法,在setSession:方法中访问视图layer属性。
//AVCaptureVideoPreviewLayer 实例,并且设置AVCaptureSession 将捕捉数据直接输出到图层中,并确保与会话状态同步。
[(AVCaptureVideoPreviewLayer*)self.layer setSession:session];
}
当然,我们还需要重写View的layerClass方法,指明是AVCaptureVideoPreviewLayer
👇🏻
+ (Class)layerClass {
//在UIView 重写layerClass 类方法可以让开发者创建视图实例自定义图层
return [AVCaptureVideoPreviewLayer class];
}
2.1 坐标转换问题
当我们拍照时,需要聚焦,比如对人拍照,通常操作是 👉🏻 点击一下摄像头中的预览图层中的人的头部,那么问题来了👇🏻
⚠️ 点击屏幕是
view
的坐标,和摄像头
所表示的坐标位置,不是同一个。
此时需要对坐标做个转换,将屏幕的坐标系转换成摄像头的坐标系,这里面涉及一些物理知识点:重力、镜像以及图层和方向等变化等因素,这里非常复杂,还好苹果系统提供了转化方法👇🏻
那么我们可以直接定义个私有的坐标系转换方法👇🏻
// 将屏幕坐标系上的触控点转换为摄像头上的坐标系点
- (CGPoint)captureDevicePointForPoint:(CGPoint)point {
AVCaptureVideoPreviewLayer *layer =
(AVCaptureVideoPreviewLayer *)self.layer;
return [layer captureDevicePointOfInterestForPoint:point];
}
2.2 自定义手势事件
我们拍照时,通常需要聚焦、曝光等操作,仿照系统相机的手势,我们添加单击聚焦、双击曝光
的手势👇🏻
- 在初始化时添加
_singleTapRecognizer =
[[UITapGestureRecognizer alloc] initWithTarget:self action:@selector(handleSingleTap:)];
_doubleTapRecognizer =
[[UITapGestureRecognizer alloc] initWithTarget:self action:@selector(handleDoubleTap:)];
_doubleTapRecognizer.numberOfTapsRequired = 2;
_doubleDoubleTapRecognizer =
[[UITapGestureRecognizer alloc] initWithTarget:self action:@selector(handleDoubleDoubleTap:)];
_doubleDoubleTapRecognizer.numberOfTapsRequired = 2;
_doubleDoubleTapRecognizer.numberOfTouchesRequired = 2;
[self addGestureRecognizer:_singleTapRecognizer];
[self addGestureRecognizer:_doubleTapRecognizer];
[self addGestureRecognizer:_doubleDoubleTapRecognizer];
[_singleTapRecognizer requireGestureRecognizerToFail:_doubleTapRecognizer];
- 事件的实现👇🏻
- (void)handleSingleTap:(UIGestureRecognizer *)recognizer {
CGPoint point = [recognizer locationInView:self];
// self.focusBox是【聚焦】view,一个动画
[self runBoxAnimationOnView:self.focusBox point:point];
if (self.delegate) {
[self.delegate tappedToFocusAtPoint:[self captureDevicePointForPoint:point]];
}
}
- (void)handleDoubleTap:(UIGestureRecognizer *)recognizer {
CGPoint point = [recognizer locationInView:self];
// self.exposureBox是【曝光】view,一个动画
[self runBoxAnimationOnView:self.exposureBox point:point];
if (self.delegate) {
[self.delegate tappedToExposeAtPoint:[self captureDevicePointForPoint:point]];
}
}
- (void)handleDoubleDoubleTap:(UIGestureRecognizer *)recognizer {
// 重置动画
[self runResetAnimation];
if (self.delegate) {
[self.delegate tappedToResetFocusAndExposure];
}
}
当然,这些事件会delegate出去👇🏻
@protocol THPreviewViewDelegate <NSObject>
- (void)tappedToFocusAtPoint:(CGPoint)point;//聚焦
- (void)tappedToExposeAtPoint:(CGPoint)point;//曝光
- (void)tappedToResetFocusAndExposure;//点击重置聚焦&曝光
@end
三、视频捕捉的配置
接下来,就是做一些视频/照片捕捉的配置工作。
3.1 设置Session
这些通常在viewController控制器页面
内设置,例如我们在控制器THCameraController
中声明AVCaptureSession
捕捉会话 👇🏻
@interface THCameraController : NSObject
@property (nonatomic, strong, readonly) AVCaptureSession *captureSession;
// 用于设置、配置视频捕捉会话
- (BOOL)setupSession:(NSError **)error;
- (void)startSession;
- (void)stopSession;
@end
当然,捕捉离不开设备,你需要用摄像头捕捉视频,麦克风捕捉音频,就涉及到输入输出设备,通常将这些定义放在扩展类中👇🏻
@interface THCameraController () <AVCaptureFileOutputRecordingDelegate>
@property (strong, nonatomic) dispatch_queue_t videoQueue; //视频队列
@property (strong, nonatomic) AVCaptureSession *captureSession;// 捕捉会话
@property (weak, nonatomic) AVCaptureDeviceInput *activeVideoInput;//输入
@property (strong, nonatomic) AVCaptureStillImageOutput *imageOutput;
@property (strong, nonatomic) AVCaptureMovieFileOutput *movieOutput;
@property (strong, nonatomic) NSURL *outputURL;
@end
接下来就是实现👇🏻
- (BOOL)setupSession:(NSError **)error {
//创建捕捉会话。AVCaptureSession 是捕捉场景的中心枢纽
self.captureSession = [[AVCaptureSession alloc]init];
/*
AVCaptureSessionPresetHigh
AVCaptureSessionPresetMedium
AVCaptureSessionPresetLow
AVCaptureSessionPreset640x480
AVCaptureSessionPreset1280x720
AVCaptureSessionPresetPhoto
*/
//设置图像的分辨率
self.captureSession.sessionPreset = AVCaptureSessionPresetHigh;
//拿到默认视频捕捉设备 iOS系统返回后置摄像头
AVCaptureDevice *videoDevice = [AVCaptureDevice defaultDeviceWithMediaType:AVMediaTypeVideo];
//将捕捉设备封装成AVCaptureDeviceInput
//注意:为会话添加捕捉设备,必须将设备封装成AVCaptureDeviceInput对象
AVCaptureDeviceInput *videoInput = [AVCaptureDeviceInput deviceInputWithDevice:videoDevice error:error];
//判断videoInput是否有效
if (videoInput)
{
//canAddInput:测试是否能被添加到会话中
if ([self.captureSession canAddInput:videoInput])
{
//将videoInput 添加到 captureSession中
[self.captureSession addInput:videoInput];
self.activeVideoInput = videoInput;
}
}else
{
return NO;
}
//选择默认音频捕捉设备 即返回一个内置麦克风
AVCaptureDevice *audioDevice = [AVCaptureDevice defaultDeviceWithMediaType:AVMediaTypeAudio];
//为这个设备创建一个捕捉设备输入
AVCaptureDeviceInput *audioInput = [AVCaptureDeviceInput deviceInputWithDevice:audioDevice error:error];
//判断audioInput是否有效
if (audioInput) {
//canAddInput:测试是否能被添加到会话中
if ([self.captureSession canAddInput:audioInput])
{
//将audioInput 添加到 captureSession中
[self.captureSession addInput:audioInput];
}
}else
{
return NO;
}
//AVCaptureStillImageOutput 实例 从摄像头捕捉静态图片
self.imageOutput = [[AVCaptureStillImageOutput alloc]init];
//配置字典:希望捕捉到JPEG格式的图片
self.imageOutput.outputSettings = @{AVVideoCodecKey:AVVideoCodecJPEG};
//输出连接 判断是否可用,可用则添加到输出连接中去
if ([self.captureSession canAddOutput:self.imageOutput])
{
[self.captureSession addOutput:self.imageOutput];
}
//创建一个AVCaptureMovieFileOutput 实例,用于将Quick Time 电影录制到文件系统
self.movieOutput = [[AVCaptureMovieFileOutput alloc]init];
//输出连接 判断是否可用,可用则添加到输出连接中去
if ([self.captureSession canAddOutput:self.movieOutput])
{
[self.captureSession addOutput:self.movieOutput];
}
self.videoQueue = dispatch_queue_create("cc.VideoQueue", NULL);
return YES;
}
以上【设置Session】的步骤大致有👇🏻
- 初始化
- 设置分辨率
- 配置输入设备
◦ 注意转换为
AVCaptureDeviceInput
◦ 包括视频输入和音频输入 - 配置输出 ◦ 静态图像输出 ◦ 视频文件输出
- 在为Session配置输入输出时
◦ 注意一定要判断
能否添加
,摄像头或麦克风是公共设备,并不隶属于App - 配置plist 👉🏻 案例中涉及摄像头、相册、麦克风,需要给用户提醒,处理隐私需求
3.2 开始&结束 Session
- (void)startSession {
//检查是否处于运行状态
if (![self.captureSession isRunning])
{
//使用同步调用会损耗一定的时间,则用异步的方式处理
dispatch_async(self.videoQueue, ^{
[self.captureSession startRunning];
});
}
}
- (void)stopSession {
//检查是否处于运行状态
if ([self.captureSession isRunning])
{
//使用异步方式,停止运行
dispatch_async(self.videoQueue, ^{
[self.captureSession stopRunning];
});
}
}
不难,有2点需要注意:
- 需要判断Session是否
处于运行
状态 异步方式
开始或停止Session,同步的话会有耗时卡顿。
四、前后摄像头的改变
iOS系统会通常会有2个摄像头 👉🏻 前置和后置,默认通常是后置摄像头。(当然,x系列
后 >2 个)。
4.1 准备方法
在做摄像头切换之前,需要写一些准备方法👇🏻
- 摄像头的数量
- (NSUInteger)cameraCount {
return [[AVCaptureDevice devicesWithMediaType:AVMediaTypeVideo] count];
}
- 指定位置的摄像头设备
- (AVCaptureDevice *)cameraWithPosition:(AVCaptureDevicePosition)position {
//获取可用视频设备
NSArray *devicess = [AVCaptureDevice devicesWithMediaType:AVMediaTypeVideo];
//遍历可用的视频设备 并返回position 参数值
for (AVCaptureDevice *device in devicess)
{
if (device.position == position) {
return device;
}
}
return nil;
}
- 激活与未激活的摄像头
- (AVCaptureDevice *)activeCamera {
//返回当前捕捉会话对应的摄像头的device 属性
return self.activeVideoInput.device;
}
//返回当前未激活的摄像头
- (AVCaptureDevice *)inactiveCamera {
//通过查找当前激活摄像头的反向摄像头获得,如果设备只有1个摄像头,则返回nil
AVCaptureDevice *device = nil;
if (self.cameraCount > 1) {
if ([self activeCamera].position == AVCaptureDevicePositionBack) {
device = [self cameraWithPosition:AVCaptureDevicePositionFront];
} else {
device = [self cameraWithPosition:AVCaptureDevicePositionBack];
}
}
return device;
}
4.2 切换摄像头
- (BOOL)switchCameras {
//判断是否有多个摄像头
if (![self canSwitchCameras])
{
return NO;
}
//获取当前设备的反向设备
NSError *error;
AVCaptureDevice *videoDevice = [self inactiveCamera];
//将输入设备封装成AVCaptureDeviceInput
AVCaptureDeviceInput *videoInput = [AVCaptureDeviceInput deviceInputWithDevice:videoDevice error:&error];
//判断videoInput 是否为nil
if (videoInput)
{
//标注原配置变化开始
[self.captureSession beginConfiguration];
//将捕捉会话中,原本的捕捉输入设备移除
[self.captureSession removeInput:self.activeVideoInput];
//判断新的设备是否能加入
if ([self.captureSession canAddInput:videoInput])
{
//能加入成功,则将videoInput 作为新的视频捕捉设备
[self.captureSession addInput:videoInput];
//将获得设备 改为 videoInput
self.activeVideoInput = videoInput;
}else
{
//如果新设备,无法加入。则将原本的视频捕捉设备重新加入到捕捉会话中
[self.captureSession addInput:self.activeVideoInput];
}
//配置完成后, AVCaptureSession commitConfiguration 会分批的将所有变更整合在一起。
[self.captureSession commitConfiguration];
}else
{
//创建AVCaptureDeviceInput 出现错误,则通知委托来处理该错误
[self.delegate deviceConfigurationFailedWithError:error];
return NO;
}
return YES;
}
切换时有几点需要注意👇🏻
- 判断是否有
多个摄像头
- 判断
新的设备
是否能加入 - 出现错误,则delegate处理👇🏻
// 发生错误事件时,需要在对象委托上调用一些方法来处理
@protocol THCameraControllerDelegate <NSObject>
- (void)deviceConfigurationFailedWithError:(NSError *)error;// 设备错误
@end
五、摄像头自动聚焦
AVCaptureDevice
定义了很多方法,让开发者控制iOS设备上的摄像头,例如👇🏻
- 可以独立调整和锁定摄像头的
焦距、曝光、白平衡
对焦和曝光
可以基于特定的兴趣点进行设置,使其在应用中实现点击对焦、点击曝光的功能- 还可以让你控制设备的
LED
作为拍照的闪光灯
或手电筒
的使用
5.1 功能是否支持
每当修改
摄像头设备时,一定要先测试修改动作是否能被设备支持
。并不是所有的摄像头都支持所有功能,例如前置摄像头就不支持对焦操作
,因为它和目标距离一般在一臂之长的距离,但大部分后置摄像头是可以支持全尺寸对焦。
⚠️注意:尝试应用一个
不被支持
的动作,会导致异常崩溃
。
所以修改摄像头设备前,需要判断是否支持
👇🏻
- (BOOL)cameraSupportsTapToFocus {
//询问激活中的摄像头是否支持兴趣点对焦
return [[self activeCamera]isFocusPointOfInterestSupported];
}
5.2 对焦
- (void)focusAtPoint:(CGPoint)point {
//获取当前激活的摄像头设备
AVCaptureDevice *device = [self activeCamera];
//是否支持兴趣点对焦 & 是否自动对焦模式
if (device.isFocusPointOfInterestSupported && [device isFocusModeSupported:AVCaptureFocusModeAutoFocus]) {
NSError *error;
//锁定设备准备配置,如果获得了锁
if ([device lockForConfiguration:&error]) {
//将focusPointOfInterest属性设置CGPoint
device.focusPointOfInterest = point;
//focusMode 设置为AVCaptureFocusModeAutoFocus
device.focusMode = AVCaptureFocusModeAutoFocus;
//释放该锁定
[device unlockForConfiguration];
}else{
//错误时,则返回给错误处理代理
[self.delegate deviceConfigurationFailedWithError:error];
}
}
}
⚠️注意:修改设备前,需要锁定
lockForConfiguration:
;修改完成后解锁unlockForConfiguration
。
六、摄像头自动曝光 & 锁定曝光

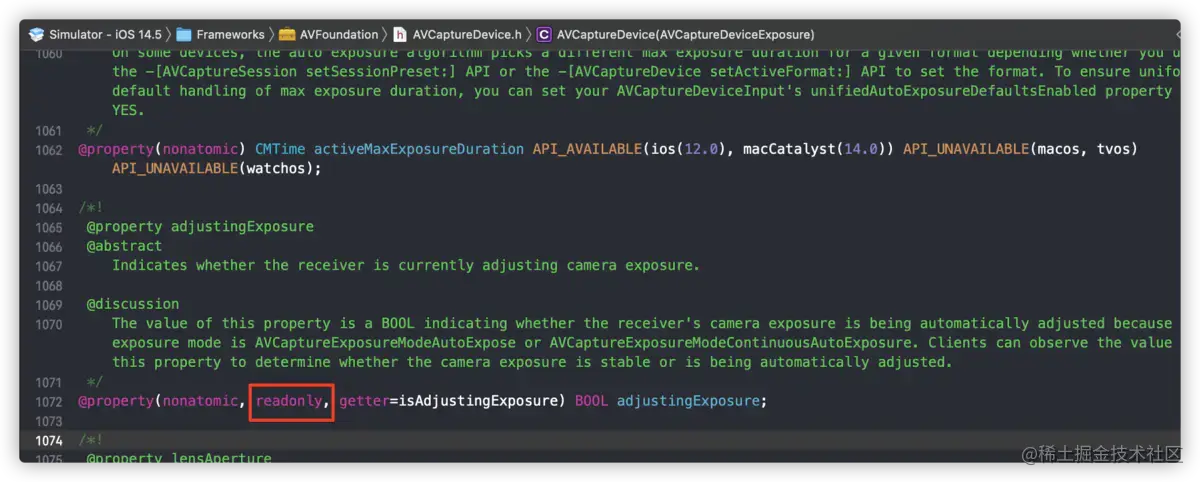

由于苹果对摄像头曝光
这块逻辑的开放度有限制,再加上我们平时开发时会碰到一些对曝光
有特殊需求的场景,此时需要我们另寻他法解决自动曝光
和锁定曝光
。
还是一样,需要判断设备是否支持曝光👇🏻
- (BOOL)cameraSupportsTapToExpose {
//询问设备是否支持对一个兴趣点进行曝光
return [[self activeCamera] isExposurePointOfInterestSupported];
}
接着就是对某一个坐标点进行曝光了👇🏻
static const NSString *THCameraAdjustingExposureContext;
- (void)exposeAtPoint:(CGPoint)point {
//获取当前激活的摄像头设备
AVCaptureDevice *device = [self activeCamera];
//指定是AutoExposure【自动曝光】的mode
AVCaptureExposureMode exposureMode =AVCaptureExposureModeContinuousAutoExposure;
//判断是否支持【自动曝光】模式
if (device.isExposurePointOfInterestSupported && [device isExposureModeSupported:exposureMode]) {
NSError *error;
//锁定设备准备配置
if ([device lockForConfiguration:&error]) {
//配置期望值
device.exposurePointOfInterest = point;
device.exposureMode = exposureMode;
//判断设备是否支持【锁定曝光】的模式
if ([device isExposureModeSupported:AVCaptureExposureModeLocked]) {
//支持,则使用kvo确定设备的adjustingExposure属性的状态。
[device addObserver:self forKeyPath:@"adjustingExposure" options:NSKeyValueObservingOptionNew context:&THCameraAdjustingExposureContext];
}
//释放该锁定
[device unlockForConfiguration];
} else {
[self.delegate deviceConfigurationFailedWithError:error];
}
}
}
和对焦
一样,在修改前需要锁定
,同时,我们看到,【锁定曝光】是通过KVO的方式观察device的adjustingExposure
属性值,为什么使用KVO呢?
因为adjustingExposure
属性是只读的,我们无法直接判断当前值的变化,所以使用KVO观察。
拿到新值后做了哪些逻辑处理呢?👇🏻
- (void)observeValueForKeyPath:(NSString *)keyPath
ofObject:(id)object
change:(NSDictionary *)change
context:(void *)context {
//判断context(上下文)是否为THCameraAdjustingExposureContext
if (context == &THCameraAdjustingExposureContext) {
//获取device
AVCaptureDevice *device = (AVCaptureDevice *)object;
//判断设备是否不再调整曝光等级,确认设备的exposureMode是否可以设置为AVCaptureExposureModeLocked
if(!device.isAdjustingExposure && [device isExposureModeSupported:AVCaptureExposureModeLocked]) {
//移除作为adjustingExposure 的self,就不会得到后续变更的通知
[object removeObserver:self forKeyPath:@"adjustingExposure" context:&THCameraAdjustingExposureContext];
//异步方式调回主队列
dispatch_async(dispatch_get_main_queue(), ^{
NSError *error;
if ([device lockForConfiguration:&error]) {
//修改exposureMode
device.exposureMode = AVCaptureExposureModeLocked;
//释放该锁定
[device unlockForConfiguration];
} else {
[self.delegate deviceConfigurationFailedWithError:error];
}
});
}
} else {
[super observeValueForKeyPath:keyPath ofObject:object change:change context:context];
}
}
KVO观察的逻辑其实就是 👉🏻 修改device
的exposureMode
为AVCaptureExposureModeLocked【锁定模式】
。
最后,我们再补充一个重置
的方法👇🏻
//重新设置对焦&曝光
- (void)resetFocusAndExposureModes {
AVCaptureDevice *device = [self activeCamera];
AVCaptureFocusMode focusMode = AVCaptureFocusModeContinuousAutoFocus;
//获取对焦兴趣点 和 连续自动对焦模式 是否被支持
BOOL canResetFocus = [device isFocusPointOfInterestSupported]&& [device isFocusModeSupported:focusMode];
AVCaptureExposureMode exposureMode = AVCaptureExposureModeContinuousAutoExposure;
//确认曝光度可以被重设
BOOL canResetExposure = [device isFocusPointOfInterestSupported] && [device isExposureModeSupported:exposureMode];
//回顾一下,捕捉设备空间左上角(0,0),右下角(1,1) 中心点则(0.5,0.5)
CGPoint centPoint = CGPointMake(0.5f, 0.5f);
NSError *error;
//锁定设备,准备配置
if ([device lockForConfiguration:&error]) {
//焦点可设,则修改
if (canResetFocus) {
device.focusMode = focusMode;
device.focusPointOfInterest = centPoint;
}
//曝光度可设,则设置为期望的曝光模式
if (canResetExposure) {
device.exposureMode = exposureMode;
device.exposurePointOfInterest = centPoint;
}
//释放锁定
[device unlockForConfiguration];
} else {
[self.delegate deviceConfigurationFailedWithError:error];
}
}
七、摄像头手电筒和闪光灯模式
手机LED灯的2种模式:手电筒和闪光灯。功能相关代码很简单👇🏻
//判断是否有闪光灯
- (BOOL)cameraHasFlash {
return [[self activeCamera] hasFlash];
}
//闪光灯模式
- (AVCaptureFlashMode)flashMode {
return [[self activeCamera] flashMode];
}
//设置闪光灯
- (void)setFlashMode:(AVCaptureFlashMode)flashMode {
//获取激活的设备
AVCaptureDevice *device = [self activeCamera];
//判断是否支持闪光灯模式
if ([device isFlashModeSupported:flashMode]) {
//如果支持,则锁定设备
NSError *error;
if ([device lockForConfiguration:&error]) {
//修改闪光灯模式
device.flashMode = flashMode;
//修改完成,解锁释放设备
[device unlockForConfiguration];
}else {
[self.delegate deviceConfigurationFailedWithError:error];
}
}
}
//是否支持手电筒
- (BOOL)cameraHasTorch {
return [[self activeCamera] hasTorch];
}
//手电筒模式
- (AVCaptureTorchMode)torchMode {
return [[self activeCamera] torchMode];
}
//设置是否打开手电筒
- (void)setTorchMode:(AVCaptureTorchMode)torchMode {
AVCaptureDevice *device = [self activeCamera];
if ([device isTorchModeSupported:torchMode]) {
NSError *error;
if ([device lockForConfiguration:&error]) {
device.torchMode = torchMode;
[device unlockForConfiguration];
} else {
[self.delegate deviceConfigurationFailedWithError:error];
}
}
}
八、静态图片拍摄
比对系统相机
,以上我们实现了一些摄像头的基础功能
👇🏻
- Session的配置,设置输入、输出设备
- 辅助功能:切换前后摄像头,聚焦,曝光,手电筒和闪光灯等。
现在继续,我们实现一个静态图片的拍摄
。一般需求是这样👇🏻
- 拍摄照片,完成后需保存到系统相册
- 提供一个缩略图,显示给user看
同时,拍摄静态图片时,还要考虑2点👇🏻
- 设备的
方向问题
:例如App只支持纵向时,也要支持横向拍摄 - 访问系统相册,需要修改
plist 权限
,否则会导致项目崩溃
8.1 方向
//获取方向值
- (AVCaptureVideoOrientation)currentVideoOrientation {
AVCaptureVideoOrientation orientation;
//获取UIDevice 的 orientation
switch ([UIDevice currentDevice].orientation) {
case UIDeviceOrientationPortrait:
orientation = AVCaptureVideoOrientationPortrait;
break;
case UIDeviceOrientationLandscapeRight:
orientation = AVCaptureVideoOrientationLandscapeLeft;
break;
case UIDeviceOrientationPortraitUpsideDown:
orientation = AVCaptureVideoOrientationPortraitUpsideDown;
break;
default:
orientation = AVCaptureVideoOrientationLandscapeRight;
break;
}
return orientation;
}
8.2 拍摄图片
/*
AVCaptureStillImageOutput 是AVCaptureOutput的子类。用于捕捉图片
*/
- (void)captureStillImage {
//获取连接
AVCaptureConnection *connection = [self.imageOutput connectionWithMediaType:AVMediaTypeVideo];
//判断是否支持设置视频方向
if (connection.isVideoOrientationSupported) {
//获取方向值
connection.videoOrientation = [self currentVideoOrientation];
}
//定义一个handler 块,会返回1个图片的NSData数据
id handler = ^(CMSampleBufferRef sampleBuffer,NSError *error) {
if (sampleBuffer != NULL) {
NSData *imageData = [AVCaptureStillImageOutput jpegStillImageNSDataRepresentation:sampleBuffer];
UIImage *image = [[UIImage alloc]initWithData:imageData];
//重点:捕捉图片成功后,保存图片到系统相册
[self writeImageToAssetsLibrary:image];
} else {
NSLog(@"NULL sampleBuffer:%@",[error localizedDescription]);
}
};
//捕捉静态图片
[self.imageOutput captureStillImageAsynchronouslyFromConnection:connection completionHandler:handler];
}
然后是保存相册的代码👇🏻
- (void)writeImageToAssetsLibrary:(UIImage *)image {
//创建ALAssetsLibrary 实例
ALAssetsLibrary *library = [[ALAssetsLibrary alloc]init];
//参数1:图片(参数为CGImageRef 所以image.CGImage)
//参数2:方向参数 转为NSUInteger
//参数3:写入成功、失败处理
[library writeImageToSavedPhotosAlbum:image.CGImage
orientation:(NSUInteger)image.imageOrientation
completionBlock:^(NSURL *assetURL, NSError *error) {
//成功后,发送捕捉图片通知。用于绘制程序的左下角的缩略图
if (!error) {
[self postThumbnailNotifification:image];
} else {
//失败打印错误信息
id message = [error localizedDescription];
NSLog(@"%@",message);
}
}];
}
发送缩略图通知👇🏻
- (void)postThumbnailNotifification:(UIImage *)image {
//回到主队列
dispatch_async(dispatch_get_main_queue(), ^{
//发送请求
NSNotificationCenter *nc = [NSNotificationCenter defaultCenter];
[nc postNotificationName:THThumbnailCreatedNotification object:image];
});
}
总结
本篇文章通过AVFoundation
框架仿照实现系统相机
的功能,主要涉及了AVCaptureSession
的配置,前后摄像头切换,聚焦、曝光的处理和闪光灯、手电筒等辅助功能,都不难,但是有几点需要注意👇🏻
-
视频预览图层
屏幕
坐标系和摄像头
坐标系的转换
-
AVCaptureSession配置
- 输入设备要转换成
AVCaptureDeviceInput
,且音频和视频的设备需要单独添加 - 输出设备可直接添加
- 添加前需判断
canAddIn(Out)put
- 配置info.plist,否则会导致项目崩溃
- 输入设备要转换成
-
前后摄像头的改变
- 改变前需
beginConfiguration
改变后需commitConfiguration
- 新的设备无法加入时,需要将原本的视频捕捉设备重新加入到捕捉会话中
- 改变前需
-
聚焦、曝光
- 需要判断
是否支持
聚焦、曝光等辅助功能 - 改变前需要锁定设备准备配置
lockForConfiguration:
,改变后释放unlockForConfiguration
锁定曝光
是通过KVO观察adjustingExposure
(只读属性)值改变时来设置
- 需要判断
-
静态图片拍摄
- 注意设备方向的判断
- 保存系统相册时需要修改
plist 权限
,否则会导致项目崩溃
